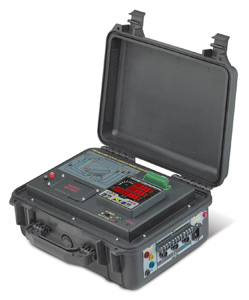

The EDL175XR Portable event & Data Logger eXtended range packs versatility and accuracy into a user-friendly, cost-effective unit. Its renders highly accurate measurement of currents in the range of 100mA to 10A (high currents from clamps or flex sensor and low currents from current transformers). Offering the same powerful capabilities as the PM175, the EDL175XR features a rugged case mounting, selectable AC power supply with 12V DC battery backup, optional current clamps or flex sensor (30A/300A/3000A), simultaneous measurement of three phase currents. Current input 1 Ampere only.

Voltage Inputs Current Clamps
690V AC Nominal Voltage Input 200 Ampere Clamps
120V AC Nominal Voltage Input Flex Sensor 30A/300A/3000Ampere
Frequency Communications
50Hz Ethernet TCP-IP
60Hz 0 - 20 mA (0-10-20)
